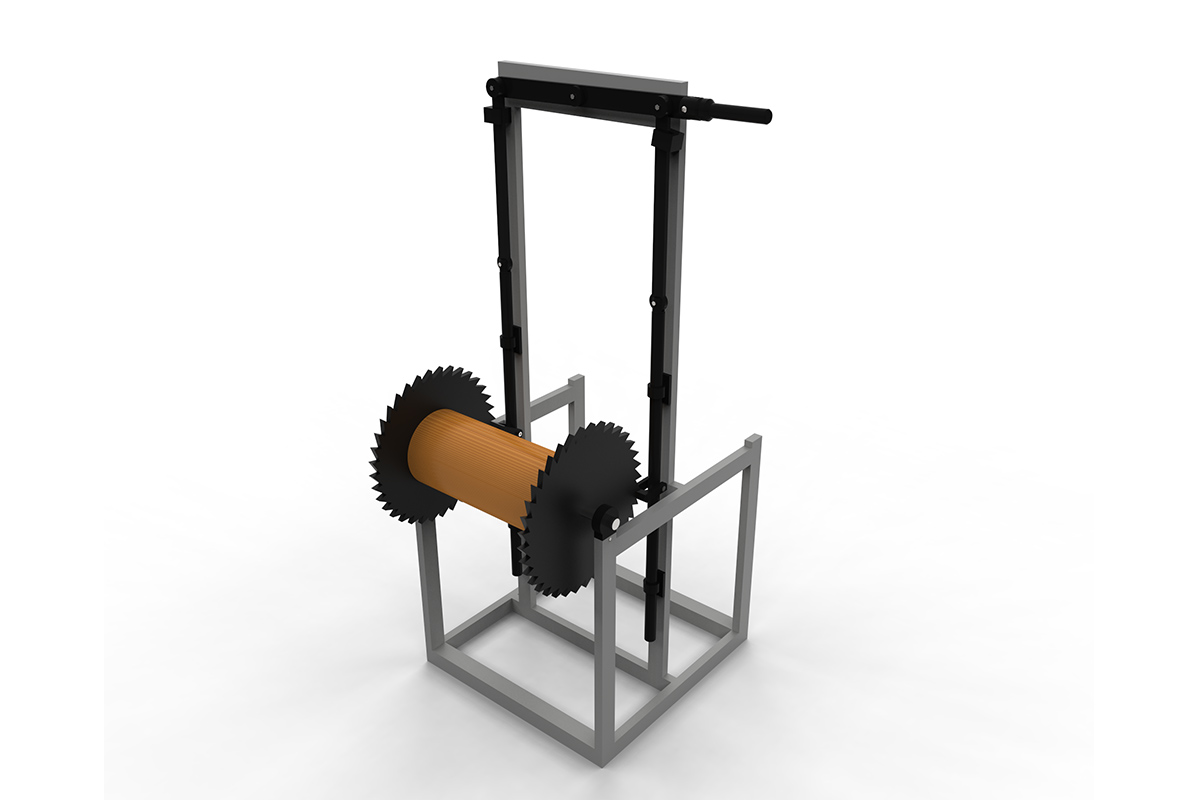

Motion Conversion Device III

This device converts linear motion into rotary motion. The user moves the handle up and down and observes how the cylinder turns. The cylidner rotates a geat wheel which creates stops in motion.





Technological Mechanism: Conversion of motion, gears



Size in millimeters: height: 1350

width: 1000

length / depth: 700
